OmniStudio vs. Apex: The Definitive Decision Guide for Salesforce Architects

In the modern Salesforce ecosystem specifically the Industry Clouds the granularity of this “Declarative or Programmatic” dilemma has been reshaped. The more refined question has become that of‘OmniStudio‘vs‘APEX’. As a Salesforce Developer/Architect, it is up to you to focus on the long-term and not the short-term, looking at TCO, Scalability and Performance.

Here we take the architectural trade-offs and make them easy so that you can decide which route to take on your next implementation.

1. The Performance Perspective: Governor Limits & Latency

In addition to discussing performance, to truly understand performance, we must look at the Transaction Lifecycle..

• Apex: This language is built into the platform and is the native to it. An Apex class will in most circumstances be definitely faster than an IP in terms of simplicity of execution across complex DML operations because it‘s running directly on the server-side.

• OmniStudio (IPs & Data Mappers): All of them are on a JSON engine. They require more CPU Time to orchestrate several calls; however, offer an additional level of abstraction. For extremely large payloads, the penalty of involving a Data Mapper for JSON transformation can break the CPU Time limit, sooner than a simple Apex Map/List approach.

• Architect‘s Rule: If you are manipulating thousands of records with complex nested logic needing tight control of memory usage, Apex is the way to go. If you are coordinating many API calls and shifting around responses for a user interface, OmniStudio usually is the way to go.

2. Maintainability and the “Developer Gap”

One of the biggest selling points for OmniStudio is the Visibility of the logic.

• Declarative Transparency: An Integration Procedure supplies a path of execution visually. The new developer is able to look at “Structure” tab and instantly know what happens step by step.

• The Pro-Code Burden: Apex is hard to keep disciplined. Without solid foundations such as the fflib pattern (Apex Enterprise Patterns), a codebase can get hard to keep up with for the next architect.

Complexity can be a pitfall in both, more than 50 blocks on an IP can be just as hard to debug as a 1,000 line Apex class. No matter the tool, simple, straightforward, clean logic should always be the priority.

3. Reusability and Extensibility

• OmniStudio: Built to be modular with the capability to call an IP from a Rest Resource, a Flow or an OmniScript. And that has an “API-first” nature to it.

• Apex: Provides OOP advantages. With Inheritance and Interfaces, you can create extremely flexible frameworks that are very hard to duplicate with OmniStudio.

• Hybrid Approach: Use OmniStudio as the “Orchestrator” and Apex as the “Engine.” From your Integration Procedure, call an Apex Action when you need to do heavy calculations that would be cumbersome in a Data Mapper formula.

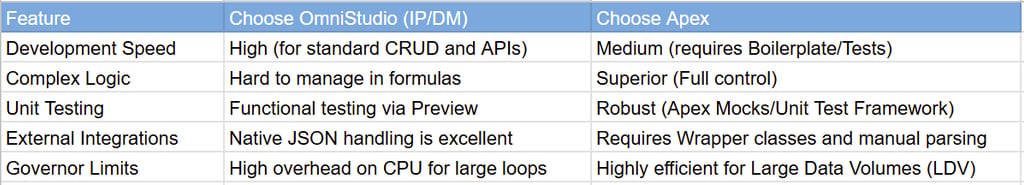

4. The Decision Matrix

5. Final Verdict: When to use what?

Choose OmniStudio when:

• Building for Industry Clouds where standard objects are involved.

• The logic is primarily focused on "Fetch, Transform, and Display."

• You need to expose logic for a FlexCard or OmniScript.

Choose Apex when:

• Implementing complex Trigger logic or asynchronous processing (Batch/Queueable).

• The business logic requires advanced mathematics or manipulation of complex data structures.

• You must strictly enforce Unit Testing and Code Coverage as part of a rigorous CI/CD pipeline.
